| Place of Origin: | China |
| Certification: | SVHC, VOC, Antimicrobia, RoHS, CE |
| Model Number: | SDT-2513 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 162 pcs / carton, 1,638 ㎡ / 20ft, 3,969 ㎡ / 40 hc |
| Delivery Time: | 8 - 12 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 800,000 ㎡ / year |
| Material: | Recyclable PP | Warranty: | 5 Years |
|---|---|---|---|
| Size: | 250 * 250 * 12.7 Mm | Weight: | 175 G ( ± 5 G ) / Pcs |
| Slip Friction: | 0.60 | Ball Rebound: | 92% |
| Vertical Demormation: | 2.3 Mm | Shock Absorption: | 38% |
| High Light: | outdoor court flooring,outdoor sports court flooring |
||
Anti Corrosion Outdoor Sports Flooring Reducing Injury And Fatigue Long Life
Modular sports floor SDT-2513 is made from high performant polypropylene copolymer, the surface is double tier pattern, the classic design pattern, solid stability, provides the athlete with better friction. Unique expansion buckle design, prevents arching and cracking. Traditional upgraded formula, shock absorption is equal to 38%, ball rebound is greater than 92%. The bottom is structured with columnar branches, connecting with substrate, providing strong support and a good buffering.
| Model | SDT-2513 |
| Applications | Futsal, basketball, running track, tennis, multiple function sports court and etc. |
| Pattern | Double tier |
| Raw material | PP |
| Certificates | RoHS / CE / SVHC / VOC / Antimicrobial |
| ECT | No, if you want Elastic Cushion Technology, please go to SMG-3015 or SDT-3016 |
| Elastic cushion | No |
| Surface | Matt |
| Drainage system | Yes. Water is drained away immediately, no ponding in surface |
| Physical feature | Hard, low heat reflection, no peeling, no cracking, no dazzling, no smelly, |
| Chemical feature | No harmful substance, anti-UV, antioxidation, anti-corrosion, fire retardant, |
| Function | Shock absorption, traction, easy installation and dismantle, low maintenance, anti-slip, anti-wear |
| Size | 250 mm * 250 mm * 12.7 mm |
| Weight | 175g (± 5) g |
| Shock absorption | 38% |
| Ball rebound | 92% |
| Vertical deformation | 2.3 mm |
| Slip friction | 0.6 |
| Locker | 4 |
| Regular color | Blue / Orange / Gray / Green / Purple / Black / Red |
| Working temperature | -15℃ to 70℃ |
| Design | 1), Double tier pattern effectively prevents players from slipping. 2), Dull edges are designed to reduce the risk of injury if players fall. 3), Flexible lock system prevents bulging or cracking from expansion or contraction. 4), Cross structure in the backside is for higher bear load capacity and better buffering. |
| Installation | 1), Make sure your substrate is hard and flat. Cement, asphalt or floor boards are recommended. Grass, dirt or rock is not suitable. 2), Place all the modular on site according to drawing. 3), lock the modular without glues or nails. Professional engineer is not required. |
| Maintenance | Low maintenance, a broom, blower or hose will do the job. |
| Quality | Strict and complete quality control system. From raw materials selecting and testing to products checking before packing. Scheduled or randomly are all recorded. |
| Service | Free court design and free sample |
| Packing | 162 pcs / carton, 10.13 ㎡ / carton, 30 kg / carton, carton 780*530*350mm. 168 / 392 cartons / 20 ft / 40 hc 1,638 / 3,969 ㎡ / 20 ft / 40 hc |
| Delivery | 8 - 15 days after deposit |
| Customization | Graphic painting, color, line marking, all are available |
| ODM / OEM | Choose from ours or we produce according to yours |
| Payment | TT / LC |

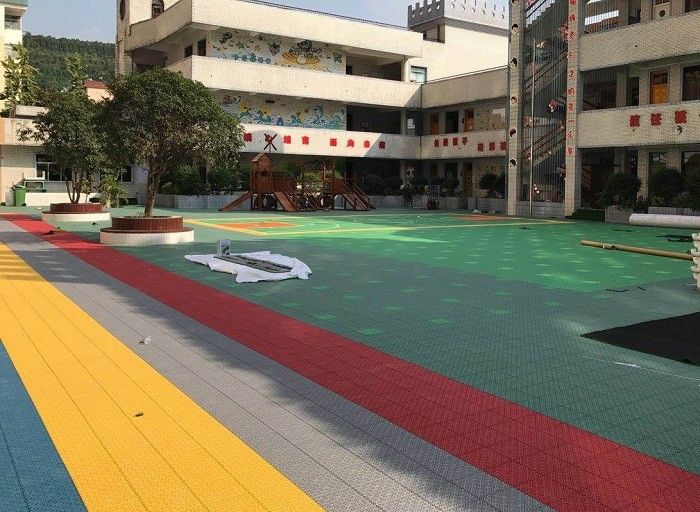

Multiple sites are used, such as the basketball court, tennis court, volleyball court, badminton courts, table tennis court, gyms, indoor soccer court, hockey court, handball court, kindergartens, entertainment place, play room, parks, an amusement field supported to the old and so on. Only needs a flat ground cement or asphalt. Installation, usually a basketball court can be completed by only 3 people in half day and then immediately for sporting.

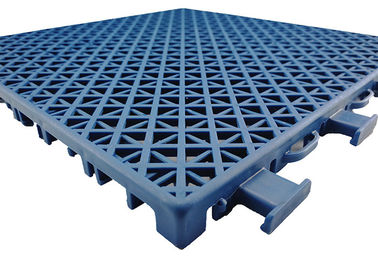

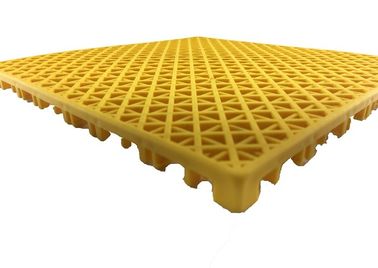

Product Picture
Color Options
Waiting for your individually court design.
